How to create a simple Video-wall with Yodeck

Introduction

Yodeck Video wall

You can build an affordable and impressive digital signage video wall setup using Yodeck Players.

You need to configure each of your screens manually. To do that for simple matrix-like video walls, like 1×3, 2×2, or 3×3, is easy.

Steps in Yodeck

Here are the steps you need to follow to configure a video wall in Yodeck.

Create 1 Video entry for each screen

  1. Go to the “Videos” section and click the “Add Video” button.
  2. In the pop-up that appears, select the “Video” option.
  3. Type in a Name, e.g., “TV 1 Top Left”.
  4. Activate the “Crop Video” toggle.
  5. Fill out the cropping required for each screen to only display the necessary part of the video. Initially, you can leave all 4 fields at 0% to test it out.
  6. Click “Save.
  7. Repeat this Video creation process for each screen in your video wall.

Create 1 Playlist for each screen

  1. Go to the “Playlists” section, click “Add Playlist,” and choose the “Classic” one.
  2. Type in a Name, e.g., “TV 1 Top Left”.
  3. Add any image with at least a 3-second duration inside the playlist.
    • If you want to have multiple videos on the playlist, you need to add an image after each video.
    • The image will act as a syncing point, helping the player to sync the videos perfectly.
  4. Add the “TV 1 Top Left” video inside the playlist.

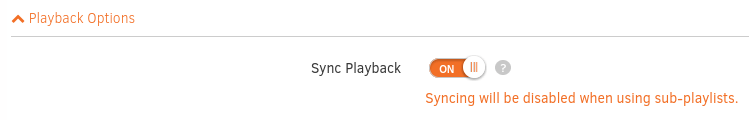

  5. Enable the Sync Playback option.
  6. Click Save.
  7. Repeat this Playlist creation process for each screen in your video wall.
  8. Assign the Playlists to each Monitor as the Default Content and click the “Push to players” button.
    • 💡Ensure you remove any assigned schedule temporarily to test it out. Later on, you can do scheduling if you want to.

The final result should be something like this for each Playlist.

Sync videos

Matrix Setups (NxN)

Simple setups for matrix video walls (2×2, 3×3) are easy in Yodeck, especially if you do not consider the bezel compensation.

For example, for a 2×2 Video-Wall, you need to specify:

  • Top-Left feed cropping: Top: 0%, Bottom: 50%, Left: 0%, Right: 50%
  • Top-Right feed cropping: Top: 0%, Bottom: 50%, Left: 50%, Right: 0%
  • Bottom-Left feed cropping: Top: 50%, Bottom: 0%, Left: 0%, Right: 50%
  • Bottom-Right feed cropping: Top: 50%, Bottom: 0%, Left: 50%, Right: 0%

Here is a diagram for a 2×2 video wall:

Video wall 2x2

Here is the same for a 3×3 Video:

Video wall 3x3

Tiled Setups (NxM)

By “tiled,” we mean matrix setups that are not NxN, e.g., a 3×1 “ribbon-like” setup:

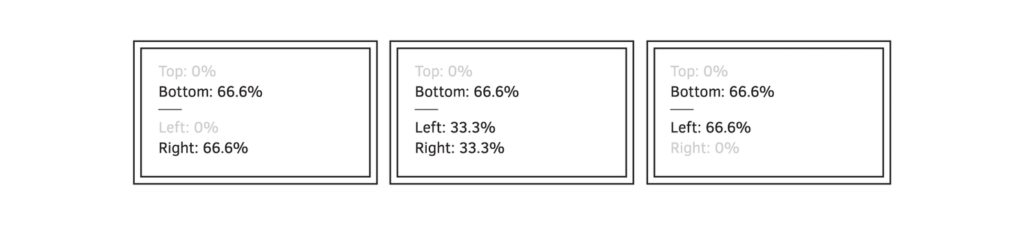

Percentages are calculated in the same way as if the Video Wall was an NxN setup, including the missing screens. You need to place your content in the Layout editor’s right area since the rest will not be shown.


Limitations

Currently, the Syncing feature has some limitations.

  1. The syncing might not be perfect. We are using time sync to sync the players. You might have a delay between 0.1 to 0.5 seconds, especially if you use videos.
  2. You need to add a static image between consecutive videos for the videos to start in almost total sync.

Need Help?

The Yodeck Support Team can help you out! Reach out!
